Auto Mortising and Tenoning Machine

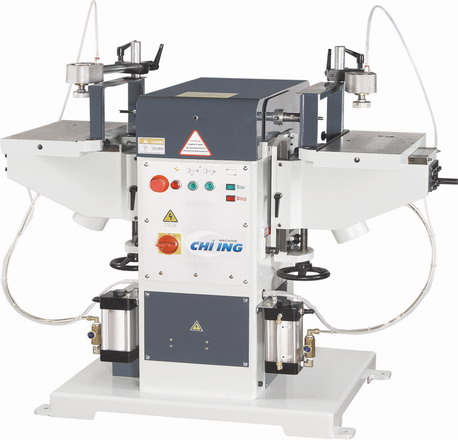

AUTOMATIC TWIN-TABLE SLOT MORTISER

MACHINE FEATURES: Two tables built at both sides of the machine permits two operators working simultaneously. Production rate up to approximately 800 motrises per hour. The machine can produce horizontal and belved mortises. Table feed forward speed is variable. Cutter oscillation speed up 67~400 times per minute. Speed is adjustable. Mortise length and depth are conveniently adjusted. Mortise length adjustment mechanism has a mechanical digital readout. Cutterhead traverses on precision bar , assuring maximum wear resistance, long service life and long time accuracy. Equipped with a safety switch and a pressure switch for

Model

CI-02

Hourly output

500~800 Slots

Slot width

Max 120mm+Slot thickness

Slot thickness

Max 30mm

Slot depth

Max 80mm

Table horizontal axis inclination

0∘~-20∘

Vertical movement

0~100mm

Cutter rotation

9000rpm

Oscillation rate

67~400 stroke/min

Spindel motor

2.2KW(3HP)

Oscillation motor

0.37KW(0.5HP)

Overall sizes

1250 X 1150 X 1300mm

Net weight

450Kg

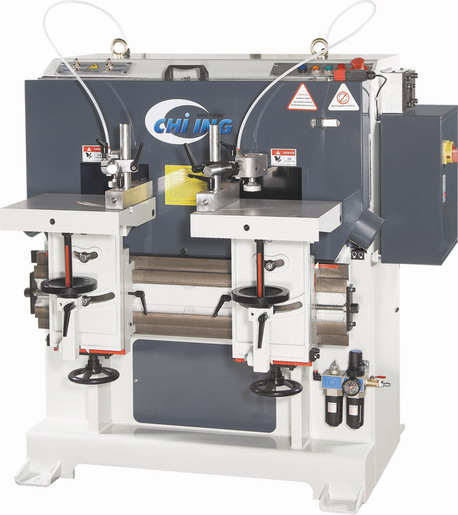

AUTOMATIC TWIN-TABLE ROUND-END TENONER



Model

K6-MDW

Hourly output

600/800 Tenons

Forward table tilt

+5�~-20�

Lateral table tilt

15�

Workpiece fence swivelling

45�

Tenon width

Max 100mm+Thhickness

Tenon thickness

Max 30mm

Tenon depth

Max 30mm

Tenoner spindle

9000rpm

Cutter motor

3.7KW(5HP)

Cycle motor

0.4KW(0.5HP)

6Bar Air Consumption

Max. 160 Nl/min

N.W./G.W.

860KGS/980KGS

Packing Size(L X W X H )

1300 X 1800 X 1600mm
