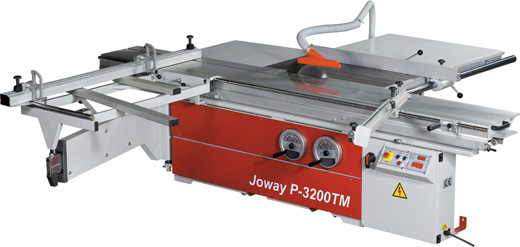

Heavy Duty Sliding Table saw/ Panel Saw

|   Double Side Planer   |   Straight Line Rip Saw   |   Sliding Table Saw   |

|   Wide Belt Sader   |   Clamp Carrier   |   Mortiser & Tenoner   |   Dovetailer   |

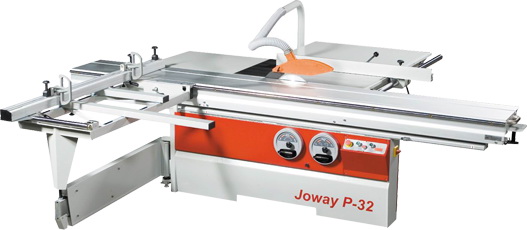

Circular saw/ Panel Saw/ Sliding Table Saw



Technical Data :-
ITEM MODEL P-2600TA / P-3200TA / P-3800TA P-2600TA 3X / P-3200TA 3X / P-3800TA 3X
Rectified cast iron fixed table dimension 620*1000 620*1000
Sliding table dimensioin 380*2600 / 3200 / 3800 380*2600 / 3200 / 3800
Main saw blade  Ø 305 (12") ● ●
Main saw blade  Ø 355 (14") / Max. V v
Main saw bore Ø 30 ( Ø 25.4 ) Ø 30 ( Ø 25.4 )
Max. cutting height with blade at 90 ° 100 100
Max. cutting height with blade at 45 ° 70 70
Main motor power 7.5HP (5.5 kw) ● ●
Main motor power 10HP (7.5 kw) V v
Main blade speed 3000 / 4000 / 5000 / 6000 rpm 3000 / 4000 / 5000 / 6000 rpm
Scoring saw blade  Ø 120 ● ●
Scoring saw blade bore Ø 22 Ø 22
Scoring blade motor power 1HP (0.75 kw) ● ●
Scoring blade speed 8000 rpm ● ●
Cutting width 1300 mm ● ●
Cutting width 1500 mm V v
Cutting width adjustment Manual CNC control
Saw table extension 400 mm ● ●
Saw table extension 800 mm (CE) V v
Mitre fence ● ●
Blade tilting adjustment Digital control  (0°~45° ) CNC control  (0°~45° )
Main saw height adjustment Motorize CNC control
Scoring saw height adjustment Motorize Motorize
Scoring saw  + /- direction adjustment Motorize Motorize
Blade tilting angle digital display ● ●
Main blade speed  digital display ● ●
Overhead saw guard Simple Simple
Luxurious (opt) Luxurious (opt)
Crosscut fence digital display V v
Rip fence digital display V
Safey bar   ●
Hanging type control panel V v
Rapid clamp V v
Tool frame ● ●
Control Panel   Keypad
Memory capacity program   30 sets
Dust collection system Main chanel 5", Simple 2", Luxurious 3" Main chanel 5", Simple 2", Luxurious 3"
