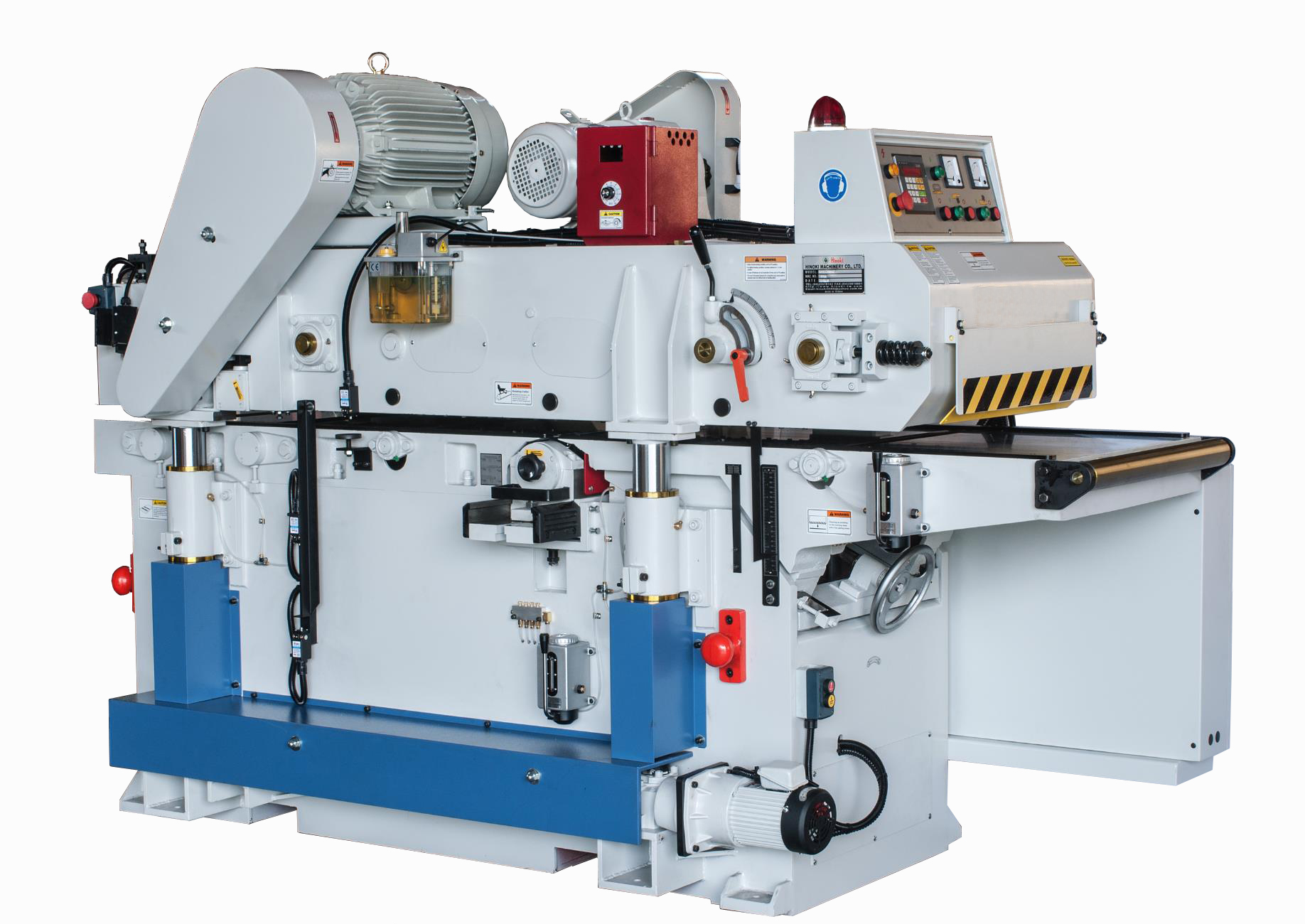

JR-635ARD double surface planer

  • Working width 635mm(25")
  • Equipped with digital positioning control
  • Equipped with NO. 1 helical cuttehead.
  • Quick thickness setting device.
  • Slideways are lubricated by central hand lubricator.
  • Feeding inverter with an additional gear reducer.



STANDARD ACCESSORIES

  • Well laid-out pressure spikes
  • Fast knife replacement
  • Fast and convenient belt tension adjustment.
  • Automatic lubricator
  • Feeding inverter
  • Gear reducer
  • Quick thickness setting(standard equipment on models JR-610A and JR-635ARD only. Optional for other models)
  • Rear control device
  • Centralized hand lubricator(standard equipment on models JR-610A and JR-635ARD only. Optional for other models)



  • The four table rollers provide superior feeding performance
  • Standard Y-delta motor starting
  • Quick belt change for bottom cutterhead
  • Automatic lubrication for feeding chain
  • Automatic lubricator provides convenient lubrication to caterpillar chain slideways
  • An air wrench is applied for removing or installing knives and saves knife change time.

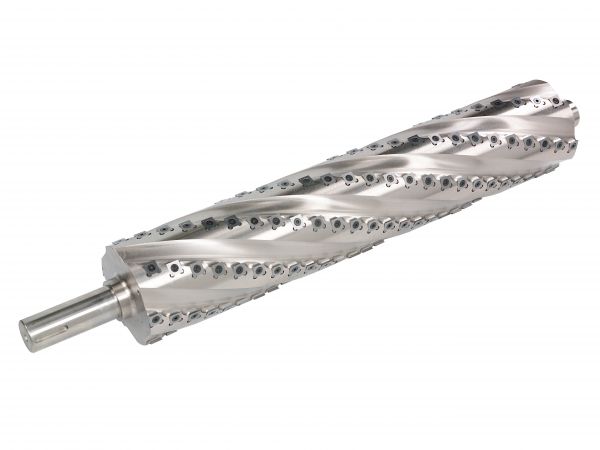

  • The upper and lower cutter heads are spiral cutter heads
  • The table surface is hard chrome plated and precision ground for extremely smooth feeding and maximum wear resistance
  • The dovetailed slideways on the table elevation assure outstanding rigidity and stability
  • Sectional infeed rollers



0

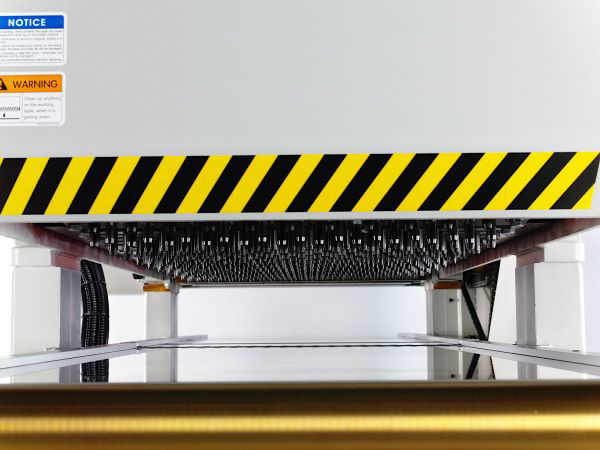

Well Laid-out pressure spikes

The pressure spikes are in an overlapped layout with a minimum of gaps that hold the workpiece firmly and evening ensuring shake-free feeding, even for short workpiece.
