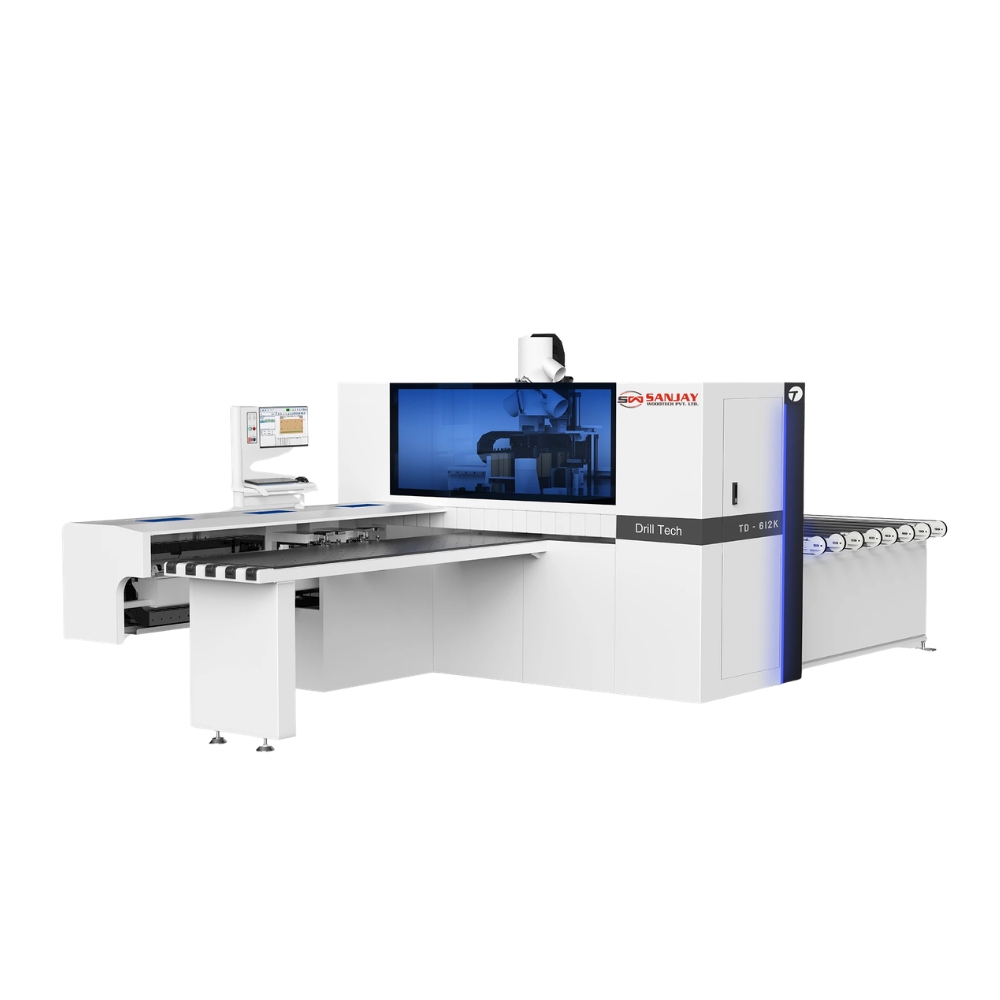

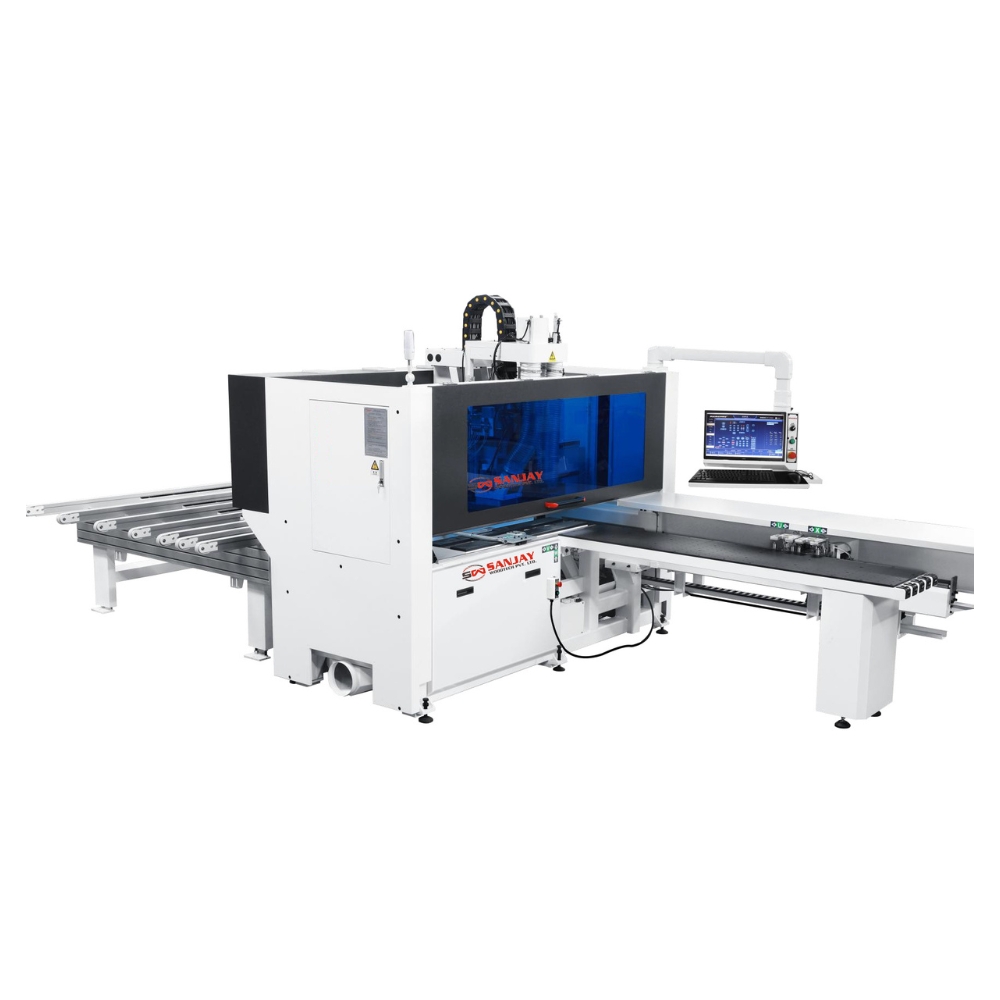

Six Side CNC Drilling – Model UA-612K
The Six Side CNC Drilling – Model UA-612K is a high-performance CNC drilling and grooving machine designed for precision machining of panel furniture components. It processes all six sides of a panel in a single setup, eliminating manual repositioning while delivering exceptional speed, accuracy, and productivity. Ideal for modular furniture manufacturing, it supports automated production with intelligent control and consistent machining quality.
Key Features
- Six-side drilling and grooving in a single clamping
- High-speed CNC control for precise and repeatable machining
- Intelligent double gripper system for accurate panel positioning
- Supports drilling, grooving, routing, and milling operations
- Compatible with MDF, plywood, particle board, and laminated panels
- Barcode scanning and CAD/CAM software integration for automated production
- Heavy-duty machine construction for stable, vibration-free operation
- Fast processing speed for high-volume manufacturing
- Reduces manual handling, setup time, and production costs
- Ideal for cabinets, wardrobes, office furniture, and modular furniture production
- Installation & commissioning at your factory
- On-site operator training included
- 12-month warranty on the machine
- Spare parts stocked in India
- Installation & commissioning at your factory
- On-site operator training included
- 12-month warranty on the machine
- Spare parts stocked in India
UA-612K
|
Model |
UA-612K |
UA-612M |
UA-612KZ |
UA-612KZJ |
UA-612KJ |
UA-612KZH |
UA-812KS |
UA-812KSA |
Processing size |
Plate width Plate length Plate thickness |
"35-1200mm (35-50mm L≤1000mm)" 70-5000 9-50mm |
"35-1200mm (35-50mm L≤1000mm)" 70-2800mm 9-50mm |
"35-1200mm (35-50mm L≤1000mm)" 70-5000 9-50mm |
35-1200mm (35-50mm L≤1000mm) 70-2800mm 9-50mm |
35-1200mm (35-50mm L≤1000mm) 70-2800mm 9-50mm |
35-1200mm (35-50mm L≤1000mm) 70-2800mm 9-50mm |
35-1200mm (35-50mm L≤1000mm) 70-2800mm 9-50mm |
35-1200mm (35-50mm L≤1000mm) 70-2800mm 9-50mm |
|---|---|---|---|---|---|---|---|---|---|
|
Top drill box |
Vertical drill Horizontal drill Motor speed |
12 8 3400rpm(r/min) |
12 8 3400rpm(r/min) |
2*12 2*8 3400rpm(r/min) |
2*12 2*8 3400rpm(r/min) |
12 8 3400rpm(r/min) |
12 8 3400rpm(r/min) |
2x12 2*8 3400rpm(r/min) |
4*12 4*8 3400rpm(r/min) |
|
Bottom drill box |
Vertical drill Motor speed |
3x3 3400rpm(r/min) |
3x3 3400rpm(r/min) |
3x3 3400rpm(r/min) |
3x3 3400rpm(r/min) |
3x3 3400rpm(r/min) |
3x3 3400rpm(r/min) |
3x3 3400rpm(r/min) |
3x3 3400rpm(r/min) |
|
Milling spindle |
Power |
2x3.5kW |
2x3.5kW |
2x3.5kW |
2x3.5kW |
2x3.5kW |
2x3.5kW |
4*3.5KW |
4*3.5KW |
|
Feeding table |
Type |
Air flotation |
Air flotation |
Air flotation |
Air flotation |
Air flotation |
Air flotation |
Air flotation |
Air flotation |
|
Discharge table |
Type |
Drum |
Drum |
Drum |
Drum |
Drum |
Drum |
Drum |
Drum |
|
Working Parameters |
Total power |
23.6 KW |
19.7kW |
23.6 KW |
29.85kW |
20.5 KW |
23 KW |
47 KW |
52.1 KW |
|
Machine |
Dimensions (LxWxH) |
5200x2840x2200mm |
5050X2790X2200mm3 |
5050X2790X2200mm |
5050X2790X2200mm |
5050X2790X2200mm |
5800x2840x2200mm |
What every order includes
A machine is only as good as the support behind it. Each MJ270 is delivered as a commissioned, production-ready installation — not just a crate on your floor.
A machine is only as good as the support behind it. Each MJ270 is delivered as a commissioned, production-ready installation — not just a crate on your floor.
Delivery & positioning
Freight, unloading and machine placement coordinated to your factory layout.
Installation & commissioning
On-site setup, calibration and a test run before handover.
Operator training
Hands-on training so your team runs the machine confidently from day one.
Warranty & spare parts
12-month machine warranty with consumables and spares stocked in India.
