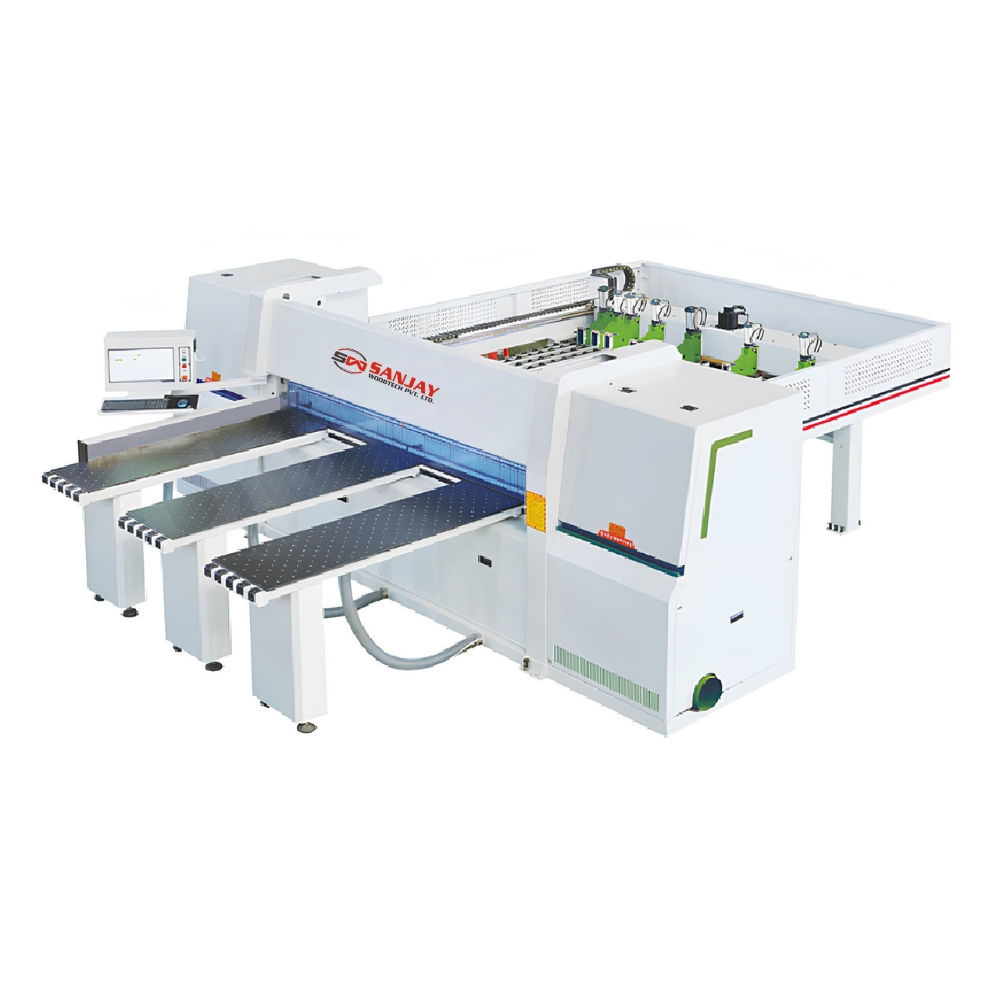

Beam Saw BS – 2700
The Beam Saw BS-2700 is a high-performance CNC panel processing machine designed for fast, accurate, and efficient cutting of MDF, plywood, particle board, laminates, and other wood-based panels. Built for modern furniture manufacturing, it delivers precise cuts, minimizes material waste, and ensures high productivity with automated operation and reliable performance.
Key Features
- High-precision CNC-controlled panel cutting
- 2700 mm cutting capacity for standard panel sizes
- Automatic material feeding for increased productivity
- Clean, chip-free cutting with main and scoring saw blades
- User-friendly touchscreen control interface
- Heavy-duty machine structure for stability and accuracy
- Fast cutting speed with optimized production efficiency
- Suitable for MDF, plywood, particle board, laminates, and solid wood panels
- Integrated dust extraction compatibility for a cleaner workspace
- Ideal for modular furniture, kitchen cabinets, wardrobes, office furniture, and panel processing industries.
- Installation & commissioning at your factory
- On-site operator training included
- 12-month warranty on the machine
- Spare parts stocked in India
- Installation & commissioning at your factory
- On-site operator training included
- 12-month warranty on the machine
- Spare parts stocked in India
BEAM SAW
|
Technical Perameters |
PS 2700 |
PS 3300 |
PS3800 |
|---|---|---|---|
|
Maximum sawing length |
2700 mm |
3300 mm |
3800 mm |
|
Maximum sawing thickness |
120mm |
120mm |
120mm |
|
Main Blade Diameter |
Φ350-450mm |
Φ350-450mm |
Φ350-450mm |
|
Main Saw Blade Shaft |
Φ75mm |
Φ75mm |
Φ75mm |
|
Main blade speed |
4800m/min |
4800m/min |
4800m/min |
|
Secondary saw blade diameter |
Φ200mm |
Φ200mm |
Φ200mm |
|
Secondary saw blade shaft |
Φ50mm |
Φ50mm |
Φ50mm |
|
Secondary saw blade speed |
7000m/min |
7000m/min |
7000m/min |
|
Saw cutting speed |
0-100m/min |
0-100m/min |
0-100m/min |
|
Overall size(L x W x H) |
5356x5950x1890mm |
5556*5950*1890 mm |
6050*5950*1890 mm |
|
Saw back speed |
0-120m/min |
0-120m/min |
0-120m/min |
|
Main saw drive motor |
15kw |
15kw |
15kw |
|
Secondary saw drive motor |
2.2kw |
2.2kw |
2.2kw |
|
Saw seat servo drive |
2kw |
2kw |
2kw |
|
Feed servo motor |
2kw |
2kw |
2kw |
|
High pressure air supply motor |
2.2kwx2 |
2.2kwx2 |
2.2kwx2 |
|
Automatic feeding speed |
0-120m/min |
0-120m/min |
0-120m/min |
|
Use air pressure |
6-8Mpa |
6-8Mpa |
6-8Mpa |
What every order includes
A machine is only as good as the support behind it. Each MJ270 is delivered as a commissioned, production-ready installation — not just a crate on your floor.
A machine is only as good as the support behind it. Each MJ270 is delivered as a commissioned, production-ready installation — not just a crate on your floor.
Delivery & positioning
Freight, unloading and machine placement coordinated to your factory layout.
Installation & commissioning
On-site setup, calibration and a test run before handover.
Operator training
Hands-on training so your team runs the machine confidently from day one.
Warranty & spare parts
12-month machine warranty with consumables and spares stocked in India.
Need Help Choosing the Right Machine?
Our team can help you select the ideal woodworking solution based on your production requirements, factory layout, material type, and budget. Get expert guidance before making your investment.
Our team can help you select the ideal woodworking solution based on your production requirements, factory layout, material type, and budget. Get expert guidance before making your investment.
From Inquiry to Installation
A clear, accountable process — so you always know the next step and who owns it.
From Inquiry to Installation
A clear, accountable process — so you always know the next step and who owns it.
Explore More
Other machines commonly ordered with this product.
Get In Touch
Request a Quote
FAQ’s
Frequently Asked Questions
Yes. We import directly from manufacturers in China, Taiwan and Europe — no middlemen involved.
Delivery timelines vary depending on the machine model and stock availability. Most standard machines are delivered within 4–8 weeks, while custom configurations may require additional time. Our team will provide an estimated delivery schedule during the quotation process.
Yes. Our experienced technicians visit your factory to handle machine installation, calibration, and commissioning, ensuring the equipment is ready for production.
Absolutely. We provide comprehensive operator training during installation, covering machine operation, maintenance procedures, safety guidelines, and best practices for maximum productivity.
Yes. We assist with factory layout and production flow planning to help optimize space utilization, improve workflow efficiency, and maximize machine performance.
We serve a wide range of industries, including furniture manufacturing, modular furniture production, interior fit-outs, woodworking workshops, panel processing facilities, cabinetry, and custom wood product manufacturers.
Yes. We can arrange live demonstrations, either at our showroom, customer sites, or through video demonstrations, so you can evaluate the machine’s performance before making a decision.
We offer flexible payment terms based on the order value and machine type. Our sales team will discuss suitable payment options during the quotation process.
Our technical experts assess your production requirements, factory space, output goals, and budget to recommend the most suitable machinery solution.
Yes. We maintain a stock of commonly required spare parts and consumables to minimize downtime and ensure quick support when needed.
