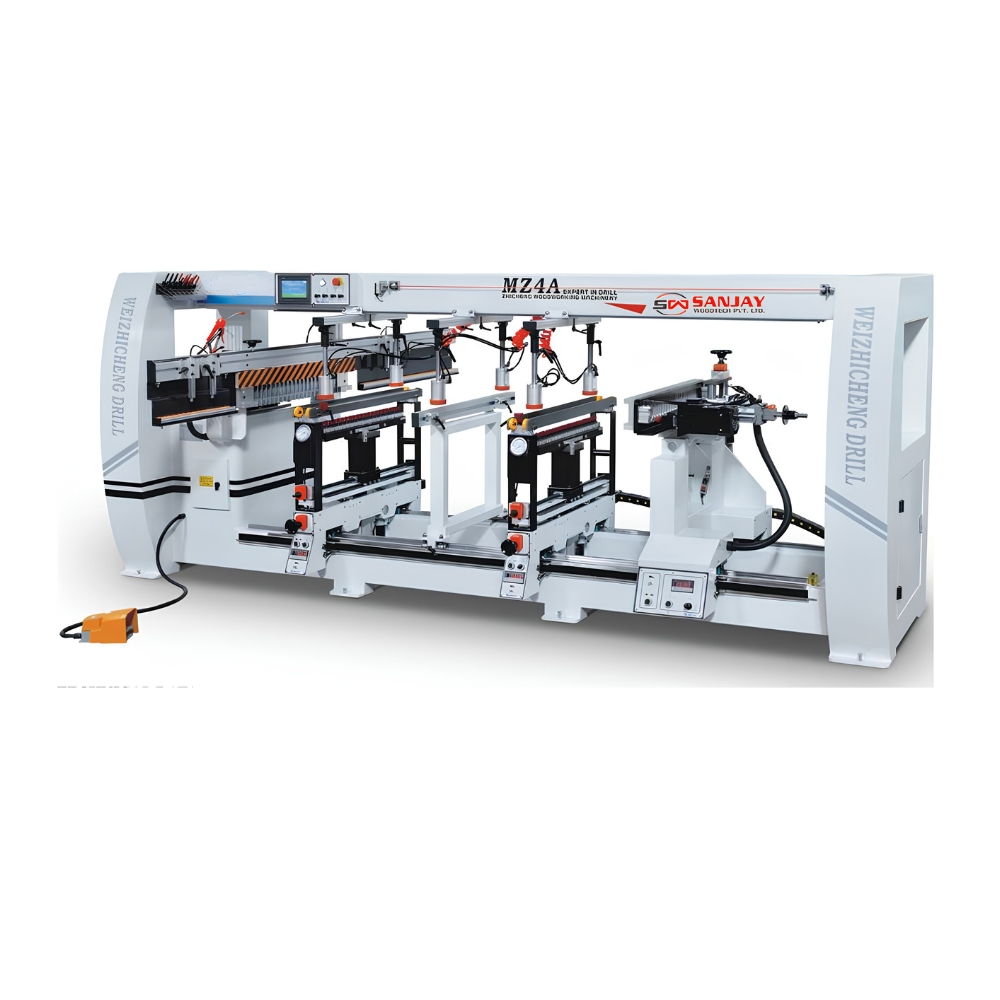

Multi Boring Machine – Model MZ-4A

The Multi Boring Machine – Model MZ-4A is a high-performance four-head woodworking drilling machine engineered for mass production of furniture panels, cabinets, wardrobes, and modular furniture. Equipped with multiple drilling heads, it performs simultaneous multi-hole drilling with exceptional precision, reducing production time while ensuring consistent and accurate results. Its robust construction, advanced pneumatic system, and user-friendly controls make it ideal for high-volume manufacturing environments.

Key Features

  • Four-head multi-boring system for high-speed, simultaneous drilling.
  • Multiple spindles for precise and uniform hole patterns.
  • Heavy-duty steel frame for maximum stability and vibration-free operation.
  • Pneumatic clamping system for secure workpiece positioning.
  • Adjustable drilling depth to suit different panel thicknesses.
  • High-speed drilling spindles for clean, accurate hole finishing.
  • Easy-to-use control panel for efficient machine operation.
  • Suitable for MDF, plywood, particle board, laminated boards, and solid wood.
  • Increases productivity while reducing manual handling and cycle time.
  • Ideal for cabinet manufacturing, modular furniture, wardrobes, office furniture, and panel processing industries.

Request A Quote
  • Installation & commissioning at your factory
  • On-site operator training included
  • 12-month warranty on the machine
  • Spare parts stocked in India
  • Installation & commissioning at your factory
  • On-site operator training included
  • 12-month warranty on the machine
  • Spare parts stocked in India
MZ-4A

Technical Perameters

MZ - 4A

MZ - 3A

MZ - 2A

MZ - A

MZ - 6A

Max. drilling diameter

Max.=35mm
D=13mm

Max.=35mm
D=13mm

Max.=35mm
D=13mm

Max.=35mm
D=13mm

Max.=35mm
D=13mm

Max. drilling depth

60mm

60mm

60mm

60mm

60mm

Total number of spindles

22*5=110

21x4=84

21x2=42

21

21*6=126

Installation drilling of drill bit shaft

10mm

10mm

10mm

10mm

10mm

Max. center distance between holes

2500x672mm

2500x672mm

2500x672mm

2500x672mm

2500x672mm

Min. center distance between holes

130x32mm

130x32mm

130x32mm

130x32mm

130x32mm

Spindle speed

2840rpm

2840rpm

2840rpm

2840rpm

2840rpm

Total power

9.6 kw

6kW

3kW

1.5kW

6kW

Weight Air Pressure

0.5-0.6mpa

0.5-0.6mpa

0.5-0.6mpa

0.5-0.6mpa

0.5-0.6mpa

Overall Dimension

NA

NA

1350x1300x1600mm

1200x900x1350mm

NA
