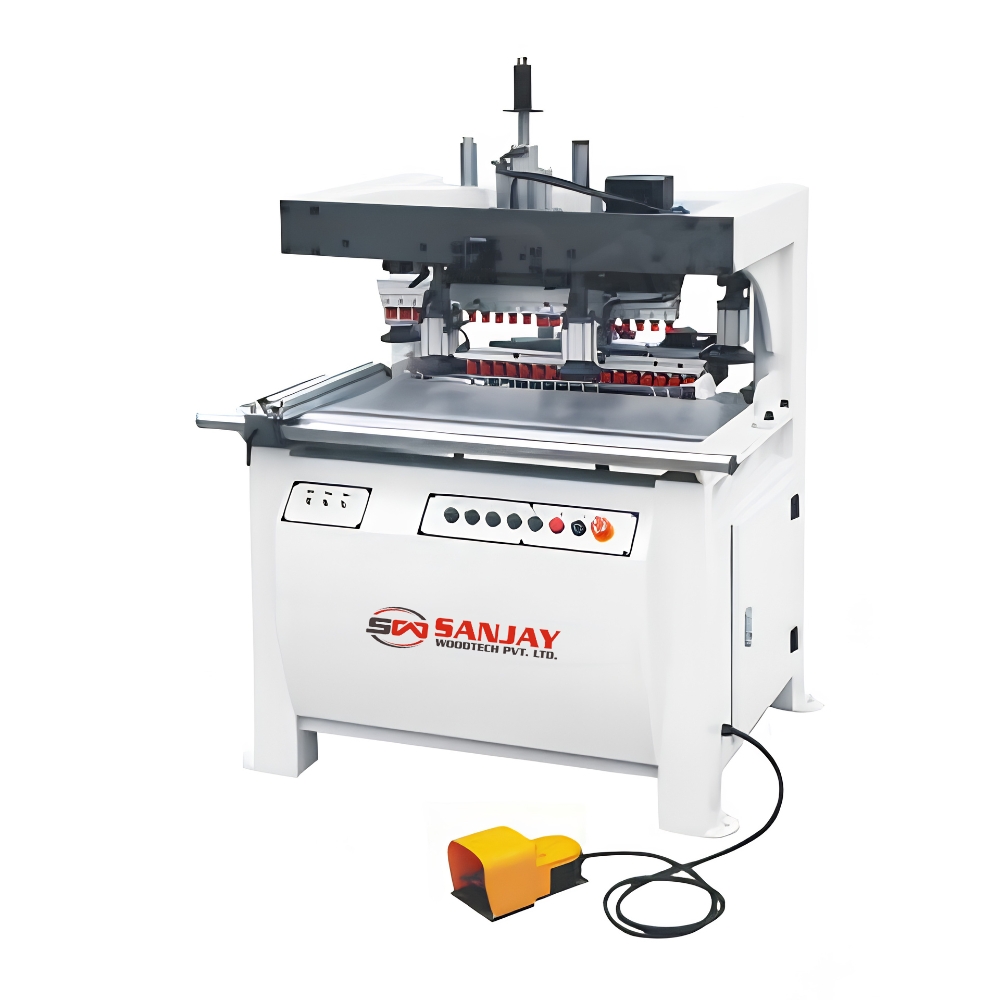

Multi Boring Machine β Model MZ-2A
The Multi Boring Machine β Model MZ-2A is a precision two-head woodworking drilling machine designed for accurate and efficient multi-hole boring in furniture panels and wooden components. Built for reliability and productivity, it enables simultaneous drilling operations, ensuring consistent hole alignment, reduced production time, and superior machining quality. It is an ideal solution for cabinet makers, modular furniture manufacturers, and woodworking industries.
Key Features
- Two-head multi-boring system for simultaneous drilling operations.
- High-precision multi-spindle boring heads for accurate hole placement.
- Rigid heavy-duty steel frame for stable, vibration-free performance.
- Pneumatic clamping system for secure workpiece positioning.
- Adjustable drilling depth for various panel thicknesses.
- User-friendly control panel for quick setup and easy operation.
- High-speed drilling delivers clean, smooth, and burr-free holes.
- Suitable for MDF, plywood, particle board, laminated panels, and solid wood.
- Increases productivity while minimizing setup time and manual effort.
- Ideal for cabinets, wardrobes, modular kitchens, office furniture, and other panel-processing applications.
- Installation & commissioning at your factory
- On-site operator training included
- 12-month warranty on the machine
- Spare parts stocked in India
- Installation & commissioning at your factory
- On-site operator training included
- 12-month warranty on the machine
- Spare parts stocked in India
MZ-2A
|
Technical Perameters |
MZ - 2A |
MZ - A |
MZ - 3A |
MZ - 4A |
MZ - 6A |
Max. drilling diameter |
Max.=35mm |
Max.=35mm |
Max.=35mm |
Max.=35mm |
Max.=35mm |
|---|---|---|---|---|---|
|
Max. drilling depth |
60mm |
60mm |
60mm |
60mm |
60mm |
|
Total number of spindles |
21x2=42 |
21 |
21x4=84 |
22*5=110 |
21*6=126 |
|
Installation drilling of drill bit shaft |
10mm |
10mm |
10mm |
10mm |
10mm |
|
Max. center distance between holes |
2500x672mm |
2500x672mm |
2500x672mm |
2500x672mm |
2500x672mm |
|
Min. center distance between holes |
130x32mm |
130x32mm |
130x32mm |
130x32mm |
130x32mm |
|
Spindle speed |
2840rpm |
2840rpm |
2840rpm |
2840rpm |
2840rpm |
|
Total power |
3kW |
1.5kW |
6kW |
9.6 kw |
6kW |
|
Weight Air Pressure |
0.5-0.6mpa |
0.5-0.6mpa |
0.5-0.6mpa |
0.5-0.6mpa |
0.5-0.6mpa |
|
Overall Dimension |
1350x1300x1600mm |
1200x900x1350mm |
NA |
NA |
NA |
What every order includes
A machine is only as good as the support behind it. Each MJ270 is delivered as a commissioned, production-ready installation β not just a crate on your floor.
A machine is only as good as the support behind it. Each MJ270 is delivered as a commissioned, production-ready installation β not just a crate on your floor.
Delivery & positioning
Freight, unloading and machine placement coordinated to your factory layout.
Installation & commissioning
On-site setup, calibration and a test run before handover.
Operator training
Hands-on training so your team runs the machine confidently from day one.
Warranty & spare parts
12-month machine warranty with consumables and spares stocked in India.
