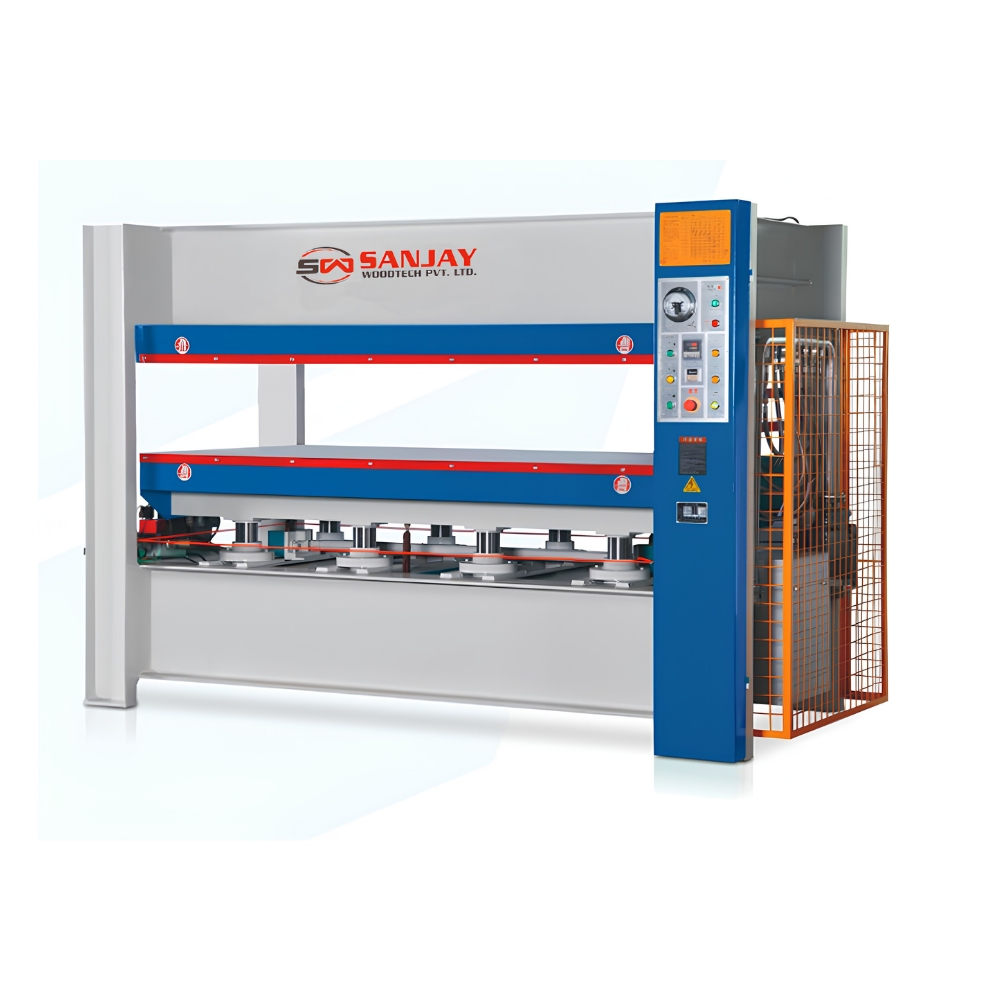

Hydraulic Hot Press – Model HP-1325-1
The Hydraulic Hot Press HP-1325-1 is a heavy-duty woodworking machine designed for high-pressure hot pressing of plywood, veneer, laminates, MDF, and other engineered wood panels. Equipped with a precision hydraulic system and uniformly heated platens, it ensures strong bonding, consistent pressure distribution, and superior surface finishing. Ideal for furniture manufacturing, panel production, and woodworking industries, the HP-1325-1 delivers reliable performance, high productivity, and long service life.
Key Features
- Heavy-duty welded steel frame for maximum strength and stability.
- High-performance hydraulic system for uniform and consistent pressing pressure.
- Precision-heated platens for even heat distribution across the entire workpiece.
- Suitable for plywood, veneer, laminates, MDF, HDF, and engineered wood panels.
- Digital temperature and pressure controls for accurate process management.
- Multi-cylinder hydraulic design for balanced pressing performance.
- Fast heating and efficient pressure application to improve productivity.
- User-friendly control panel with easy operation and monitoring.
- Safety protection features for secure and reliable operation.
- Designed for continuous industrial production with low maintenance requirements.
- Installation & commissioning at your factory
- On-site operator training included
- 12-month warranty on the machine
- Spare parts stocked in India
- Installation & commissioning at your factory
- On-site operator training included
- 12-month warranty on the machine
- Spare parts stocked in India
HP-1325
|
Technical Perameters |
HP - 1325 - 1 |
HP - 1325 - 2 |
HP - 1325 - 3 |
HP - 1325 - 5 |
Maximum pressure (In Ton) |
120 (optional 160) |
120 (optional 160) |
120 (OPTIONAL 160) |
160T |
|---|---|---|---|---|
|
Numbe of hot press plate |
2 |
3 |
4 |
6 |
|
Thickness Of press plate |
42 mm |
42 mm |
42 mm |
42 mm |
|
Size of hot press plate |
2500 x 1300 mm |
2500 x 1300 mm |
2500 x 1300 mm |
2500 x 1300 mm |
|
Spacing of hot press plate |
90 mm |
100 mm |
100 mm |
100 mm |
|
Oil cylinder |
90*10pcs |
100*10pcs |
100*10pcs |
100*10pcs |
|
Hydraulic motor power |
5.5 kw |
5.5 kw |
5.5 kw |
5.5 kw |
|
Heat pump power |
2.2 kw |
2.2 kw |
2.2 kw |
2.2 kw |
|
Heating pipe power |
32 kw |
42KW |
48 kw |
60kw |
|
Dimensions |
3500x1600x2050 |
3500x1700x2200mm |
3500x1700x2200mm |
3500x1700x2650mm |
|
Net weight |
5200 kg |
6500 KG |
8000 kg |
11000kg |
What every order includes
A machine is only as good as the support behind it. Each MJ270 is delivered as a commissioned, production-ready installation — not just a crate on your floor.
A machine is only as good as the support behind it. Each MJ270 is delivered as a commissioned, production-ready installation — not just a crate on your floor.
Delivery & positioning
Freight, unloading and machine placement coordinated to your factory layout.
Installation & commissioning
On-site setup, calibration and a test run before handover.
Operator training
Hands-on training so your team runs the machine confidently from day one.
Warranty & spare parts
12-month machine warranty with consumables and spares stocked in India.
