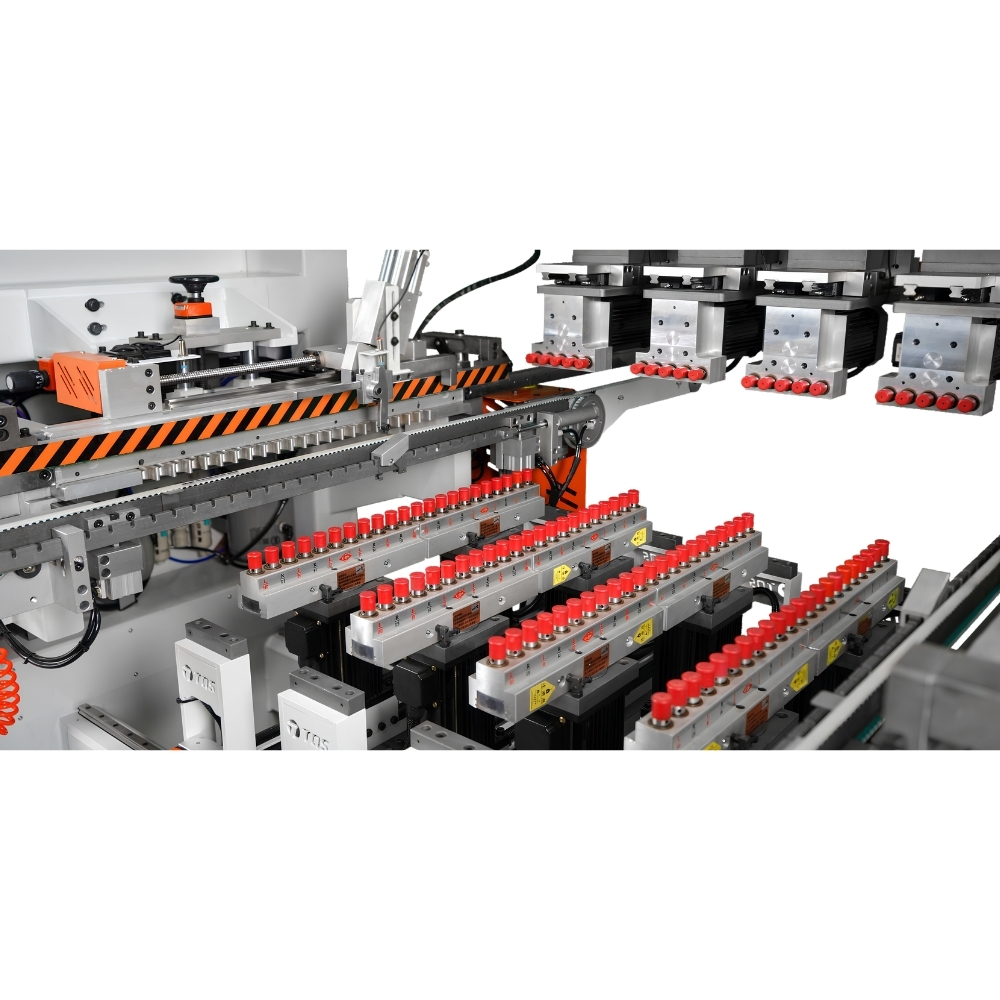

Multi Boring Machine Technical Parameter
- Installation & commissioning at your factory
- On-site operator training included
- 12-month warranty on the machine
- Spare parts stocked in India
- Installation & commissioning at your factory
- On-site operator training included
- 12-month warranty on the machine
- Spare parts stocked in India
| Item | 610×60C | 560/530 | 400/405 | 610-C4AP |
| Maximum Processing Hole Distance | 5300 × 62 mm | 2500 × 75 mm | 2500 × 62 mm | 2500 × 75 mm |
| Maximum Processing Hole Length | 3000 mm | 3000 mm | 3000 mm | 3000 mm |
| Processing Length | Max. 2500 mm, 3000 mm | Max. 2500 mm, 3000 mm | Max. 2500 mm, 3000 mm | Max. 2500 mm, 3000 mm |
| Processing Speed | Single Head 40–60 pcs/min | Double Head 60–120 pcs/min | Double Head 50–150 pcs/min | — |
| Workpiece Processing Thickness | 8–50 mm | 8–50 mm | 8–50 mm | 8–50 mm |
| Maximum Drilling Depth | 50 mm | 50 mm | 50 mm | 50 mm |
| Number of Vertical Drill Bits | 4 Nos. | 3 Nos. | 2 Nos. | 4 Nos. |
| Number of Horizontal Drill Bits | 1 No. | 1 No. | 1 No. | 1 No. |
| Left Horizontal Drilling Unit | 1 No. | 1 No. | 1 No. | 1 No. |
| Total Number of Drill Spindles | 132 Nos. | 110 Nos. | 80 Nos. | 152 Nos. |
| Processing Speed | 13–16 holes/second | 10 holes/second | 10 holes/second | 15 holes/second |
| Drill Feed Motor | 10 mm | 10 mm | 10 mm | 10 mm |
| Total Installed Power | 8.7 kW | 5.7 kW | 5.7 kW | 8.7 kW |
| Spindle Rotation Speed | 2840 rpm | 2840 rpm | 2840 rpm | 2840 rpm |
| Maximum Drilling Diameter | 13 mm (purple drill bit), 35 mm (large drill bit) | Same | Same | Same |
| Motor Type | 415 V / 50 Hz | 415 V / 50 Hz | 415 V / 50 Hz | 415 V / 50 Hz |
| Total Power | 15 kW | 12 kW / 7.5 kW | 15 kW | 21 kW |
| Overall Dimensions | 4850 × W × 2430 × 1730 mm | 4700 × W × 2590 × 1730 mm | 4700 × W × 2580 × 1730 mm | 4700 × W × 2580 × 1730 mm |
What every order includes
A machine is only as good as the support behind it. Each MJ270 is delivered as a commissioned, production-ready installation — not just a crate on your floor.
A machine is only as good as the support behind it. Each MJ270 is delivered as a commissioned, production-ready installation — not just a crate on your floor.
Delivery & positioning
Freight, unloading and machine placement coordinated to your factory layout.
Installation & commissioning
On-site setup, calibration and a test run before handover.
Operator training
Hands-on training so your team runs the machine confidently from day one.
Warranty & spare parts
12-month machine warranty with consumables and spares stocked in India.
Need Help Choosing the Right Machine?
Our team can help you select the ideal woodworking solution based on your production requirements, factory layout, material type, and budget. Get expert guidance before making your investment.
Our team can help you select the ideal woodworking solution based on your production requirements, factory layout, material type, and budget. Get expert guidance before making your investment.
From Inquiry to Installation
A clear, accountable process — so you always know the next step and who owns it.
From Inquiry to Installation
A clear, accountable process — so you always know the next step and who owns it.
Explore More
Other machines commonly ordered with this product.
Get In Touch
Request a Quote
FAQ’s
Frequently Asked Questions
Yes. We import directly from manufacturers in China, Taiwan and Europe — no middlemen involved.
Delivery timelines vary depending on the machine model and stock availability. Most standard machines are delivered within 4–8 weeks, while custom configurations may require additional time. Our team will provide an estimated delivery schedule during the quotation process.
Yes. Our experienced technicians visit your factory to handle machine installation, calibration, and commissioning, ensuring the equipment is ready for production.
Absolutely. We provide comprehensive operator training during installation, covering machine operation, maintenance procedures, safety guidelines, and best practices for maximum productivity.
Yes. We assist with factory layout and production flow planning to help optimize space utilization, improve workflow efficiency, and maximize machine performance.
We serve a wide range of industries, including furniture manufacturing, modular furniture production, interior fit-outs, woodworking workshops, panel processing facilities, cabinetry, and custom wood product manufacturers.
Yes. We can arrange live demonstrations, either at our showroom, customer sites, or through video demonstrations, so you can evaluate the machine’s performance before making a decision.
We offer flexible payment terms based on the order value and machine type. Our sales team will discuss suitable payment options during the quotation process.
Our technical experts assess your production requirements, factory space, output goals, and budget to recommend the most suitable machinery solution.
Yes. We maintain a stock of commonly required spare parts and consumables to minimize downtime and ensure quick support when needed.
