Heavy Duty Panel Saw PS 132/128 | PS 116/122
The Heavy Duty Panel Saw Series is designed for precision cutting of plywood, MDF, particle board, laminates, and other sheet materials. Equipped with a smooth sliding table and high-speed spindle system, it ensures accurate and efficient cutting performance for furniture manufacturing, woodworking workshops, and panel processing industries.
Key Features:
- Heavy-duty construction for stable and vibration-free operation.
- Precision sliding table for smooth material movement and accurate cuts.
- Powerful main motor delivering high cutting efficiency.
- Adjustable blade tilt from 0° to 45° for bevel cutting applications.

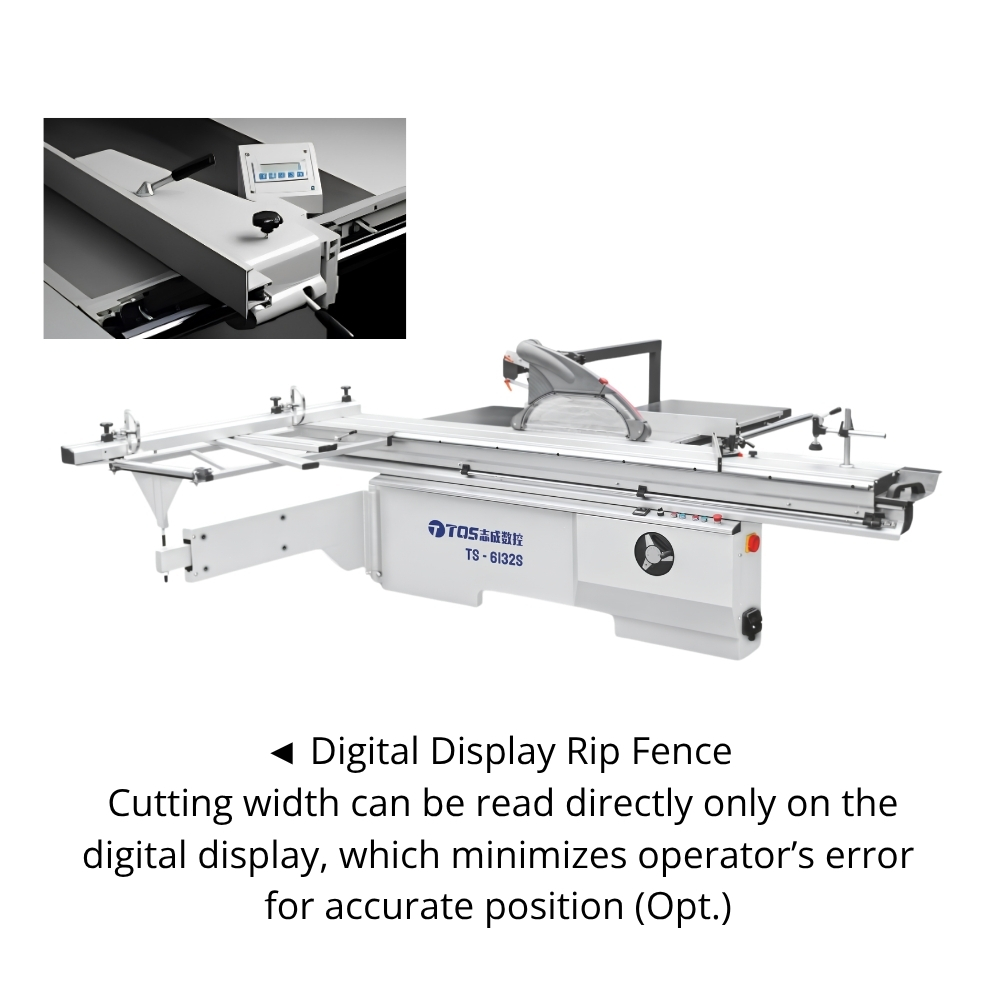

- Digital display rip fence (PS-132/128) for precise positioning and improved productivity.

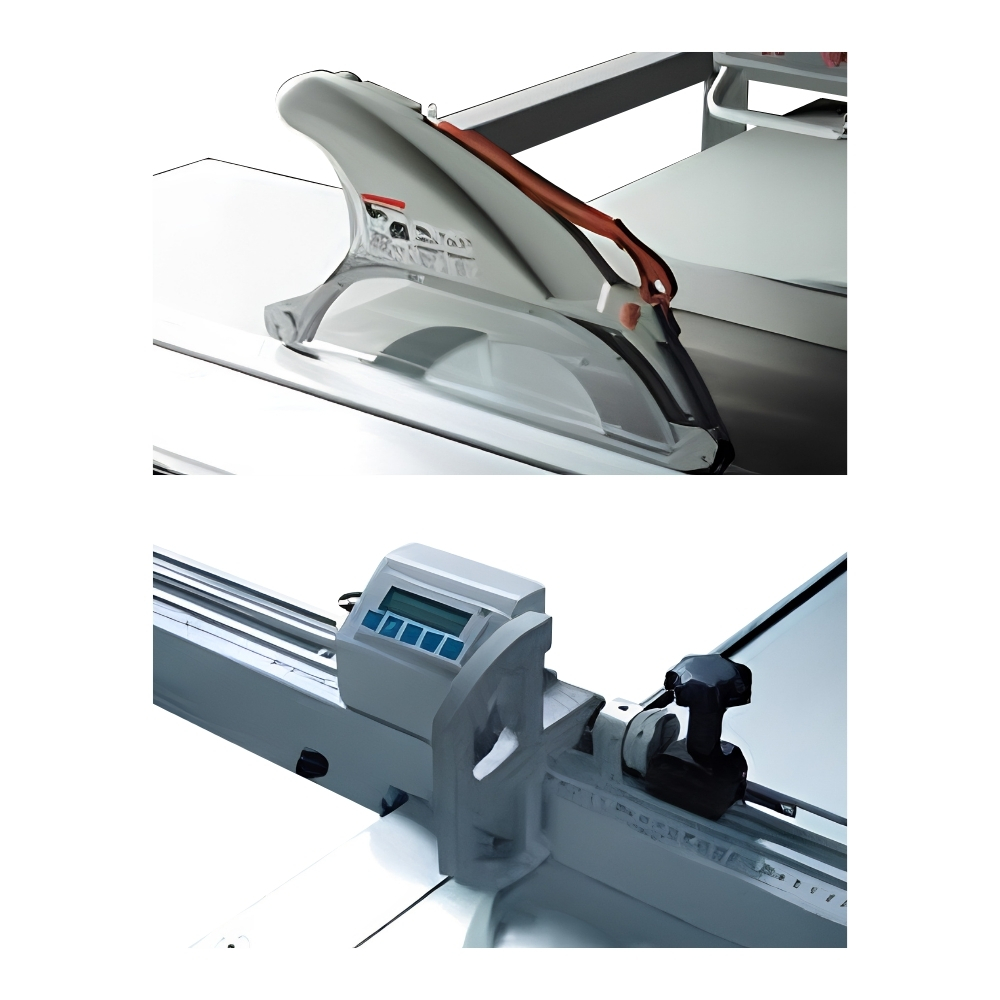

- Dual-position saw guard for enhanced operator safety.
- Scoring saw unit minimizes chipping and provides clean cutting edges.
- Suitable for cutting plywood, MDF, particle board, solid wood panels, and laminated sheets.
- Installation & commissioning at your factory
- On-site operator training included
- 12-month warranty on the machine
- Spare parts stocked in India
- Installation & commissioning at your factory
- On-site operator training included
- 12-month warranty on the machine
- Spare parts stocked in India
| Item | PS-132 | PS-122 | PS-116 |
| Dimension of sliding table | 3200 × 390mm | 2200 × 390mm | 1600 × 390mm |
| Cross cut capacity | 3200mm | 2200mm | 1600mm |
| Width of cut between saw blade and rip fence | 1250mm | 1250mm | 1250mm |
| Saw blade diameter | 300mm (250–350) | 300mm (250–350) | 300mm (250–300) |
| Height of cut | 80mm | 80mm | 70mm |
| Diameter of guide shaft spindle | 50mm | 50mm | 50mm |
| Speed of main saw spindle | 4000/6000 rpm | 4000/6000 rpm | 4000/6000 rpm |
| Main spindle diameter | 30mm | 30mm | 30mm |
| Tilting saw blade | 0–45° | 0–45° | 0–45° |
| Main motor | 7.5 Hp | 5.5 Hp | 5.5 Hp |
| Scoring saw blade diameter | 120mm | 120mm | 120mm |
| Speed of scoring saw blade | 8000 r/min | 8000 r/min | 8000 r/min |
| Scoring spindle diameter | 20mm | 20mm | 20mm |
| Scoring motor | 0.75 kW | 0.75 kW | 0.75 kW |
| Net weight | 1100 kg | 800 kg | 600 kg |
| Weight | 1150 kg | 850 kg | 650 kg |
| Overall dimensions | 3250 × 3590 × 870 mm | 2250 × 3000 × 870 mm | 1650 × 2500 × 870 mm |
What every order includes
A machine is only as good as the support behind it. Each MJ270 is delivered as a commissioned, production-ready installation — not just a crate on your floor.
A machine is only as good as the support behind it. Each MJ270 is delivered as a commissioned, production-ready installation — not just a crate on your floor.
Delivery & positioning
Freight, unloading and machine placement coordinated to your factory layout.
Installation & commissioning
On-site setup, calibration and a test run before handover.
Operator training
Hands-on training so your team runs the machine confidently from day one.
Warranty & spare parts
12-month machine warranty with consumables and spares stocked in India.
